Motorized assistance in the industrial sector

Visuel domaine industry

Production cycle optimization

Adding an electrical motorization on manual handling equipment allows improving production cycle while preserving the health of operators. Motorize any rolling equipment in industry such as heavy load carriers, industrial hand trucks or special machinery with ez-Wheel® electric wheels.

Our product offer is made for responding the industrial sector's requirements:

Performance

  • flexible handling between different production workshops
  • material or semi-finished supplies optimization
  • stock-outs and production stops decrease


Operators

  • professional risk, especially MSD (Musculoskeletal disorders) reduction
  • sick leave reduction
  • productivity increase up to +50%

Our solutions for the industrial sector

Heavy loads transportation effortlessly, non-stop and safely!

[+] Up to 2 tons moved without effort

Wheels can be paired to double the moved-load capacity.

[+] Severe vibration and knocks resistance

Thanks to the reinforced cast iron housing and wheel hub, the Series 150 wheel can withstand knocks and severe vibration and enables the wheel to carry some load.

[+] Guaranteed continuous conveying

The transfer carriage or carousel can easily be powered to ensure repetitive motions. 2 external batteries can be added to allow for continuous use.

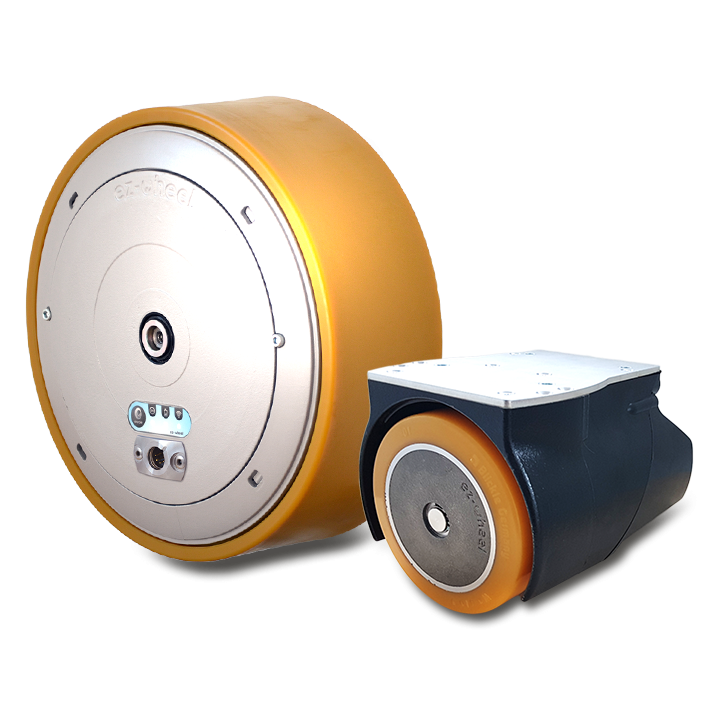

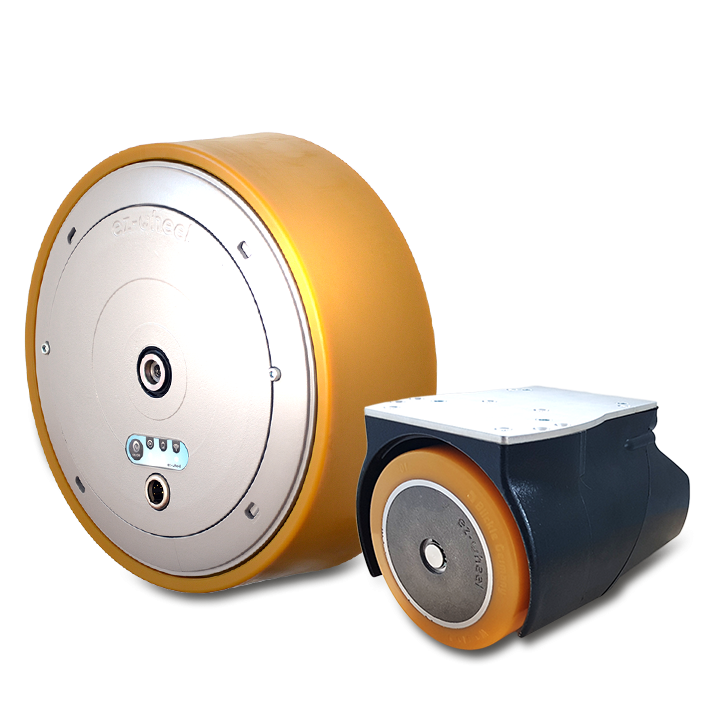

ez Wheel Serie 300I 150I
realisation serie 300I heavy duty platform

Heavy duty platform motorized by an ez-Wheel® Series 300I electric wheel

realisation serie 150I tool trolley

Tool trolley equipped with an ez-Wheel® Series 150I electric wheel operating in industrial harsh environment

realisation serie 300I heavy load carrier

ez-Wheel® Series 300I electric wheel motorizes a heavy load/large dimensions carrier

They trust us
logo arcelormittal partenaire 2022
logo flandria partenaire 2022
logo yanmar partenaire 2022
logo claas partenaire 2020
logo manitou partenaire 2020
logo thyssenkrupp partenaire 2020

ez-Wheel products adapted to the sector

ezW300I/WR
electric wheel ez wheel serie 300I
picto regen EN picto wireless EN
Use
  • industrial handling tools
  • towed rolling equipment
  • trolleys
  • pusher/pullers
Main Specifications
Format / diameter 300 mm
Max vertical load Up to 300 kg
Speed 0 to 9 km/h
Type of tyre 80 sh.A polyurethane
Nominal power 12 daN at 6 km/h
Battery capacity 240 Wh
Peak torque 52 Nm
Pushing effort 35 daN / 1000 kg moved
ezW300I/CCR
electric wheel series 300i ccr 0
picto regen EN picto serial EN
Use
  • industrial handling tools
  • towed rolling equipment
  • trolleys
  • (...)
Main Specifications
Format / diameter 300 mm
Max vertical load Up to 300 kg
Speed 0 to 9 km/h
Type of tyre 80 sh.A polyurethane
Nominal power 12 daN at 6 km/h
Battery capacity 240 Wh
Peak torque 52 Nm
Pushing effort 35 daN / 1000 kg moved
Ref. ezW150I-0
electric wheel serie 150I 0 02
picto shockproof EN
Use
  • industrial trolleys
  • rolling equipment for factories
  • mobile workstations and tools
  • (...)
Main Specifications
Format / diameter 150 mm
Max vertical load Up to 400 kg
Speed 0 à 5 km/h
Type of tyre 92 sh.A extrathane
Nominal power 15 daN at 4 km/h
Battery capacity 0/70/140 Wh (0/1/2 batteries)
Peak torque 27 Nm
Pushing effort 35 daN / 1 ton moved
Option(s) Parking brake /B, Additional battery

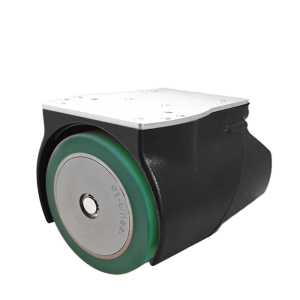

Ref. ezW150I-0/S
electric wheel ez wheel serie 150I S 02
picto grip EN picto shockproof EN
Use
  • industrial trolleys
  • rolling equipment for factories
  • mobile workstations and tools
  • (...)
Main Specifications
Format / diameter 150 mm
Max vertical load Up to 400 kg
Speed 0 to 5 km/h
Type of tyre 63 sh.A soft polyurethane
Nominal power 15 daN at 4 km/h
Battery capacity 0/70/140 Wh (0/1/2 batteries)
Peak torque 27 Nm
Pushing effort 35 daN / 1 ton moved
Option(s) Parking brake /B, Additional battery
Control Ref. ezRTH/W
accessoires smart control ezRTH W 0
picto IP54 EN picto wireless EN
Use
  • pusher/pullers
  • industrial hand trucks
  • heavy load carriers
Joystick Ref. ezAAR
accessories smart control ezAAR
picto IP67 EN
Use
  • joystick APEM 3000 Series
  • manual trucks
  • industrial motors
Joystick Ref. ezAARmini
accessories smart control ezAARmini
picto IP67 EN
Use
  • APEM Series TS joystick
  • medical carts
  • control panels
Control Ref. ezRPP/UC
accessories smart control ezRPP UC 0
picto IP54 EN picto serial EN picto wireless EN
Use
  • towed trailers
  • mobile platforms
  • (...)
