Robots for logistics applications
Means for automated logistics
SWD® solutions enable the automation of all order picking, Good-to-Man, automated storage or pallet and package conveying applications for the modern logistics warehouse.
Safety and reliability requirements:
- Exclusive safety features in accordance with ISO 3691-4
- Products designed for continuous operation
Integrator expectations:
- Pre-configured control and safety routines
- Minimum footprint to facilitate customised solutions
Users:
- Safe machine operation for operators
- Simple architectures facilitating the maintenance of solutions
Our solutions for warehouse robotisation
The toolbox for robotising all logistics flows!
[+] Collaborative solutions

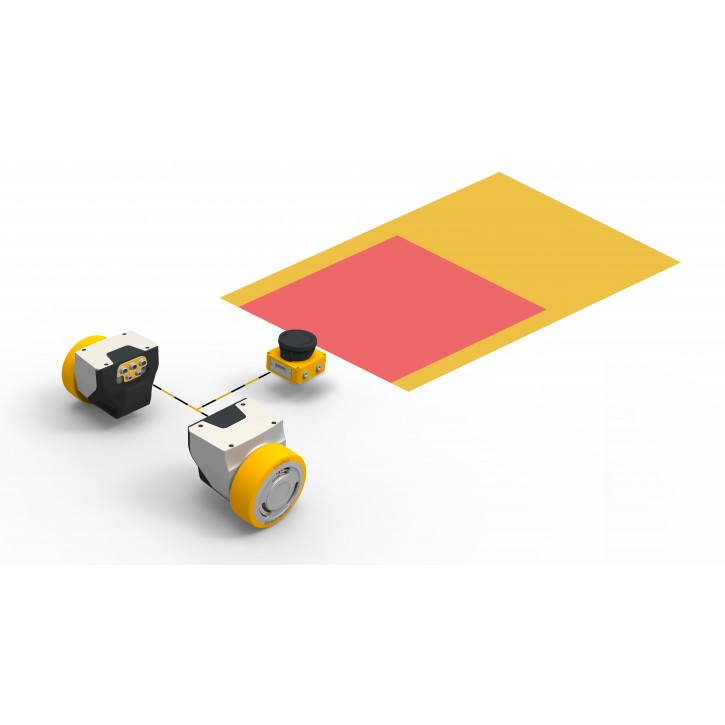

The integrated safety control of SWD® products allows the rapid implementation of mobile robots operating in close proximity to operators, in complete safety.
[+] Application to all movements
All movements, ground, overhead, vertical or 3-axis, can be motorised with SWD® products and controlled individually or centrally.

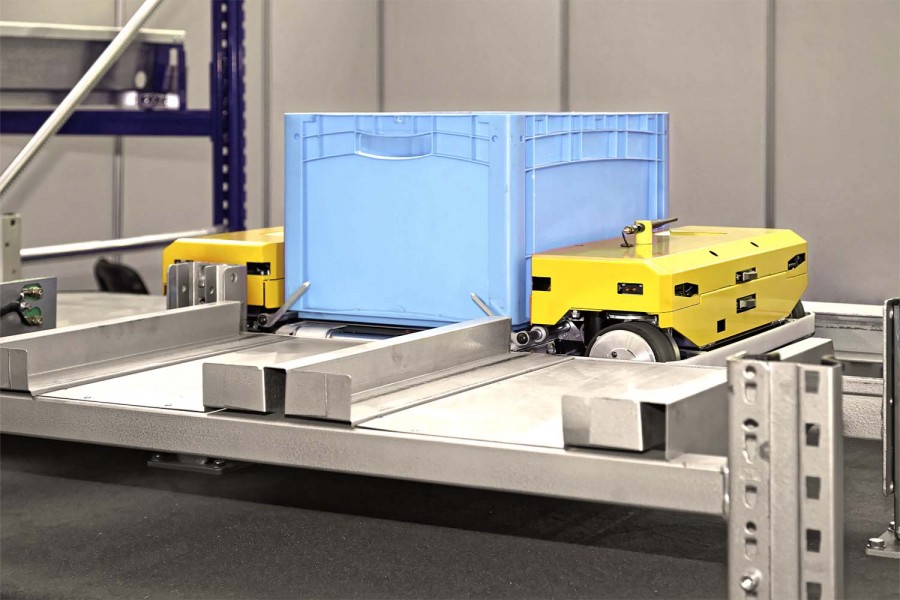

[+] Sizing for packages and pallets

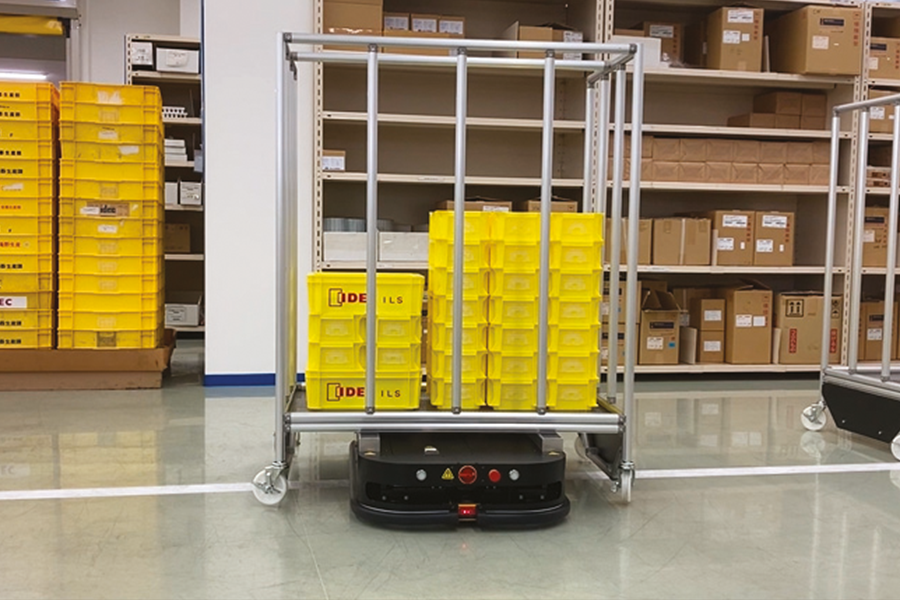

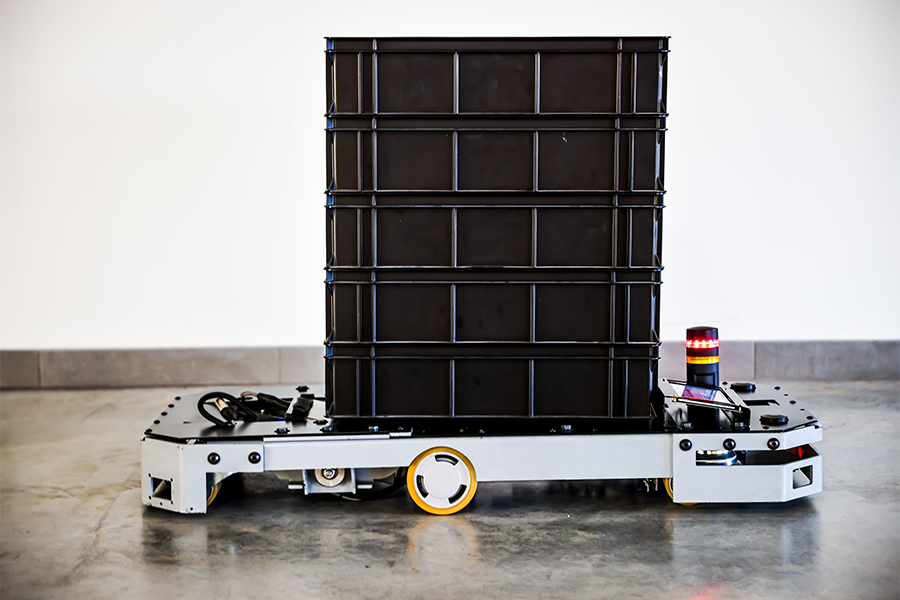

A mobile robot equipped with two SWD® 150 wheels can independently move a parcel weighing a few kilos as well as a pallet weighing more than a ton.
ez-Wheel products adapted to the sector
Ref. ezSWD150IH.14x/C-x
Use
- mobile robotics
- AGVs
- AMRs
Main Specifications
Format / diameter
150 mm
Max vertical load
Up to 700 kg
Speed
0 to 3.7 km/h
Type of tyre
PU 92 sh. A – Flat profile
Nominal power
185 W (S1)
Battery capacity
100 Wh
Peak torque
45 Nm
Pushing effort
60 daN / 1.5t moved
Option(s)
Additional battery, Parking brake /B
Ref. ezSWD125IM.4x/C
Use
- logistics robots
- service robots
- AGVs / AMRs
Main Specifications
Format / diameter
125 mm
Max vertical load
250 kg (static)
Speed
0 to 11 km/h
Type of tyre
PU 80 sh. A – Flat profile
Nominal power
200 W (S1)
Peak torque
13 Nm
Pushing effort
20 daN / 500 kg moved
Option(s)
Parking brake /B
Ref. ezSWD150IH.25x/C-x
Use
- industrial transfers
- low-speed transfers
- AGVs / AMRs
Main Specifications
Format / diameter
150 mm
Max vertical load
Up to 700 kg
Speed
0 to 2.1 km/h
Type of tyre
PU 92 sh. A – Flat profile
Nominal power
185 W (S1)
Battery capacity
100 Wh
Peak torque
63 Nm
Pushing effort
84 daN / 2.1t moved
Option(s)
Additional battery, Parking brake /B
Ref. ezSWD125IM.14x/C
Use
- mobile platforms
- industrial robots
- AGVS / AMRs
Main Specifications
Format / diameter
125 mm
Max vertical load
250 kg
Speed
0 to 3.2 km/h
Type of tyre
PU 80 sh. A – Flat profile
Nominal power
185 W (S1)
Peak torque
37 Nm
Pushing effort
60 daN / 1.500 kg moved
Option(s)
Parking brake /B
Ref. ezSWDcore.0x/C
Use
- Robots
- Pallet shuttles
- Lifts
- Conveyors
Main Specifications
Speed
0 to 1 800 rpm
Nominal power
250 W (S1)
Peak torque
4.4 Nm
Option(s)
Parking brake /B
Ref. ezSWDcore.4x/C
Use
- Robots
- Pallet shuttles
- Lifts
- Conveyors
Main Specifications
Speed
0 to 490 rpm
Nominal power
200 W (S1)
Peak torque
13 Nm
Option(s)
Parking brake /B
Ref. ezSWDcore.14x/C
Use
- Robots
- Pallet shuttles
- Lifts
- Conveyors
Main Specifications
Speed
0 to 130 rpm
Nominal power
185 W (S1)
Peak torque
37 Nm
Option(s)
Parking Brake /B
Ref. ezSWDcore.25x/C
Use
- Robots
- Pallet shuttles
- Lifts
- Conveyors
Main Specifications
Speed
0 to 72 rpm
Nominal power
145 W (S1)
Peak torque
37 Nm
Option(s)
Parking brake /B
Safety scanner Ref. SE2L
Safety edge Ref. E30BK1
Hub Ref. ezSWDsafetyhub
Ref. ezSWDcore.50x/C
Use
- Robots
- Pallet shuttles
- Lifts
- Conveyors
Main Specifications
Speed
0 to 36 rpm
Nominal power
72 W (S1)
Peak torque
37 Nm
Option(s)
Parking brake /B
Ref. ezSWDcore.100x/C
Use
- Robots
- Pallet shuttles
- Lifts
- Conveyors
Main Specifications
Speed
0 to 18 rpm
Nominal power
37 W (S1)
Peak torque
37 Nm
Option(s)
Parking brake /B
