EW2A 150Hxxxx ezSWD150IH.xxx C x 24092024 (Photo HD DET)

The new SWD® range, in addition to integrating electric traction functions, now includes a complete IT system allowing it to operate autonomously and safely in its environment.

The combination of SWD® with safety scanners addresses the functional needs of mobile robots, in full compliance with global machine safety regulations.

The SWD® wheels are compatible with all safety laser scanners on the market, ensuring a SIL2/PLd level safety package.

Main features of the range:

Ø 150 mm
Up to 2.100 kg moved
IP66 index (electronic housing)
PU 92 sh.A flat profile
Safe motion control functions

Which wheel for which use?

EW2A-150Hx14x
Ref. ezSWD150IH.14x/C-x

EW2A 150Hx14x ezSWD150IH.14x C x 11092024 (Photo HD DET)

Use

mobile robotics
AGVs
AMRs

Main Specifications

Format / diameter 150 mm

Max vertical load Up to 700 kg

Speed 0 to 3.7 km/h

Type of tyre PU 92 sh. A – Flat profile

Nominal power 185 W (S1)

Battery capacity 100 Wh

Peak torque 45 Nm

Pushing effort 60 daN / 1.5t moved

Option(s) Additional battery, Parking brake /B

Download technical file Download 2D CAD file Download 3D CAD file

EW2A-150Hx25x
Ref. ezSWD150IH.25x/C-x

EW2A 150Hx25x ezSWD150IH.25x C x 11092024 (Photo HD DET)

Use

industrial transfers
low-speed transfers
AGVs / AMRs

Main Specifications

Format / diameter 150 mm

Max vertical load Up to 700 kg

Speed 0 to 2.1 km/h

Type of tyre PU 92 sh. A – Flat profile

Nominal power 185 W (S1)

Battery capacity 100 Wh

Peak torque 63 Nm

Pushing effort 84 daN / 2.1t moved

Option(s) Additional battery, Parking brake /B

Download technical file Download 2D CAD file Download 3D CAD file

Videos of our applications

ez-wheel-application videoChariot desserte

ezwheel ez-wheel $application->title

The first safety wheel drive for AGV/AMR

Photos of our achievements

SWD safety wheel drive EN

The first safety wheel drive for AGV/AMR

Integrated safety offers the simplest mobile robot architecture available

Integrated safety offers the simplest mobile robot architecture available

The compact design of the motorization with integrated security allows for a great deal of flexibility in integration

The compact design of the motorization with integrated security allows for a great deal of flexibility in integration

The integrated safety functions allow risk anticipation

The integrated safety functions allow risk anticipation

The safety wheel drives can automate all production flows

The safety wheel drives can automate all production flows

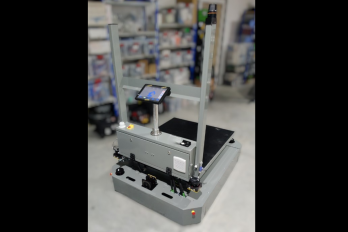

IDEC EZ WHEEL SWD 150 robot mobile custom

Customized mobile robot for handling concrete forms, equipped with a pair of SWD® 150 safety wheels, Safety PLC, scanners, Emergency stops, warning devices, tag reader, touch screen, charger and lift system.

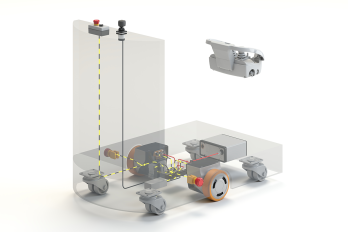

IDEC EZ WHEEL SWD 150 AGV manual control

Typical setup for manual control or remote control, including a pair of SWD® Safety Wheel Drive, CANopen APEM Joystick XF Series, Emergency stop and Lithium battery.

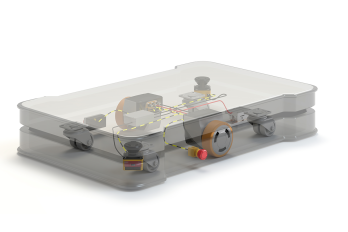

IDEC EZ WHEEL SWD 150 mobile robot with ez Way navigation software

Typical setup for a mobile robot with navigation including a pair of SWD® Safety Wheel Drive, a SE2L safety laser scanner, Emergency stop XW1F and the ez-Way® navigation software.

IDEC EZ WHEEL SWD 150 AGV line guided

Typical setup for line guided platform including a pair of SWD® Safety Wheel Drive, a SE2L safety laser scanner, Ergonomic joystick controllers PC 2441, Safety Edge E30BK1and Emergency stop XW1F.
